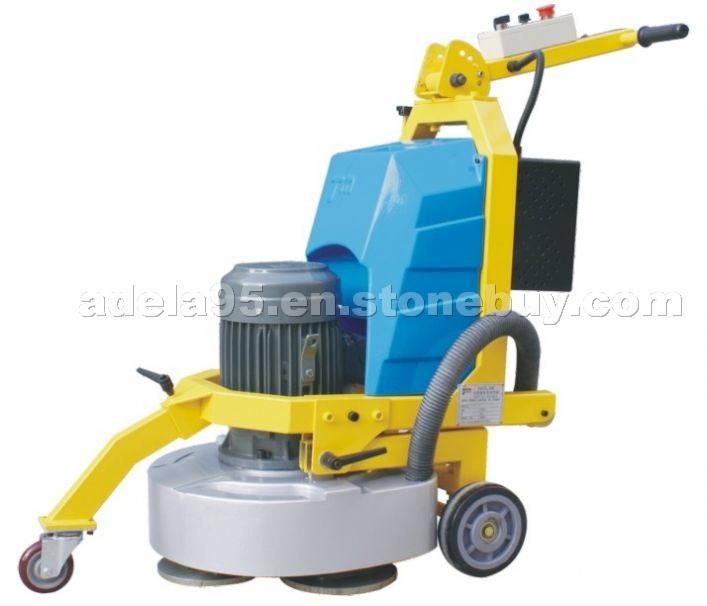

TM-9 Polishing Machine

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1471098

• Place of Origin:

  China
• TM-9 is a another revolutionary brakthrough in the field of floor machinery made by Tuomei after several years research. Equipped with heavy-duty motor and variable frequency devices, TM-9 is capable of continuous working. Meanwhile, a number of features including dry mulling and water mulling, unique dust collecting and cleaning spray, triple head planet disc and buffering whet head leveling device. The speed of all discs can reach up to 2000rpm. Besides, extensive choice of metallic cutter heads, whet head and abrasives will significantly reduce construction cost.

  HP 7.5HP
  VOLTAGE 220/380/460V
  AMPERE 16A
  WORK AREA 520mm
  WATER-TANK 25L
  WEIGHT 200Kg
  HIGH 960mm
  WIDE 530mm
  REVOLUTION 0-800rpm
  RATATION 0-2000rpm

  It is equiped with triple whet head planet mulling disc.May install nine pieces to rub the block and whet head,dispositiondraining water.Enhances the leveling working efficiency.
  Behind disposes electrically operated rubs the pressure control system,Front disposes dismantable moves the drive wheel,Causes the machinery utilization scope broadly,the working drriciency is higher.
  Electronic and intelligent level regulators will consistently control the parallelism between machine and the floor so as to impreove construction quality.
  Variable frequency speed control will choos different speeds to suit different materials,which not only improves mechanical efficiency, reduces abrasives consumption but also protects the rotating electric parst.
